YABARI Compensating deburring tool

  • SPINDLE SPEED 10.000rpm

  • ROTATION : CLOCKWISE

  • FEED : 2000-4000 mm/min

The holder has a top rated speed of 10.000min-1
The gripping range of the collet is ø0.6 to ø7mm for ER11.

Built-in mechanism to contract 10mm in the axial direction.

YABARI is capable of applying constant pressure of the cutting edge against the surface to deburr.

YABARI has built-in load adjustment mechanism

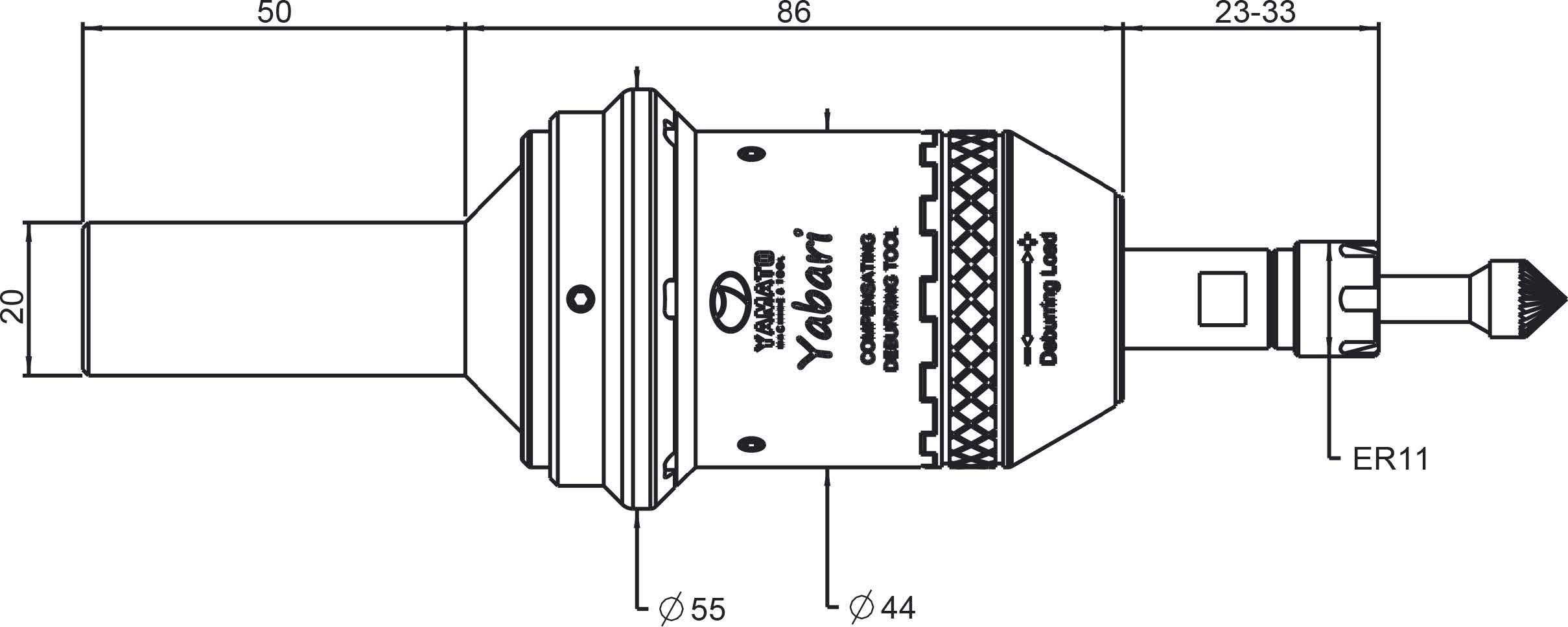

YABARI PUSH TYPE

Compensating deburring tool

10mm AXIAL DEFLECTION PUSHING

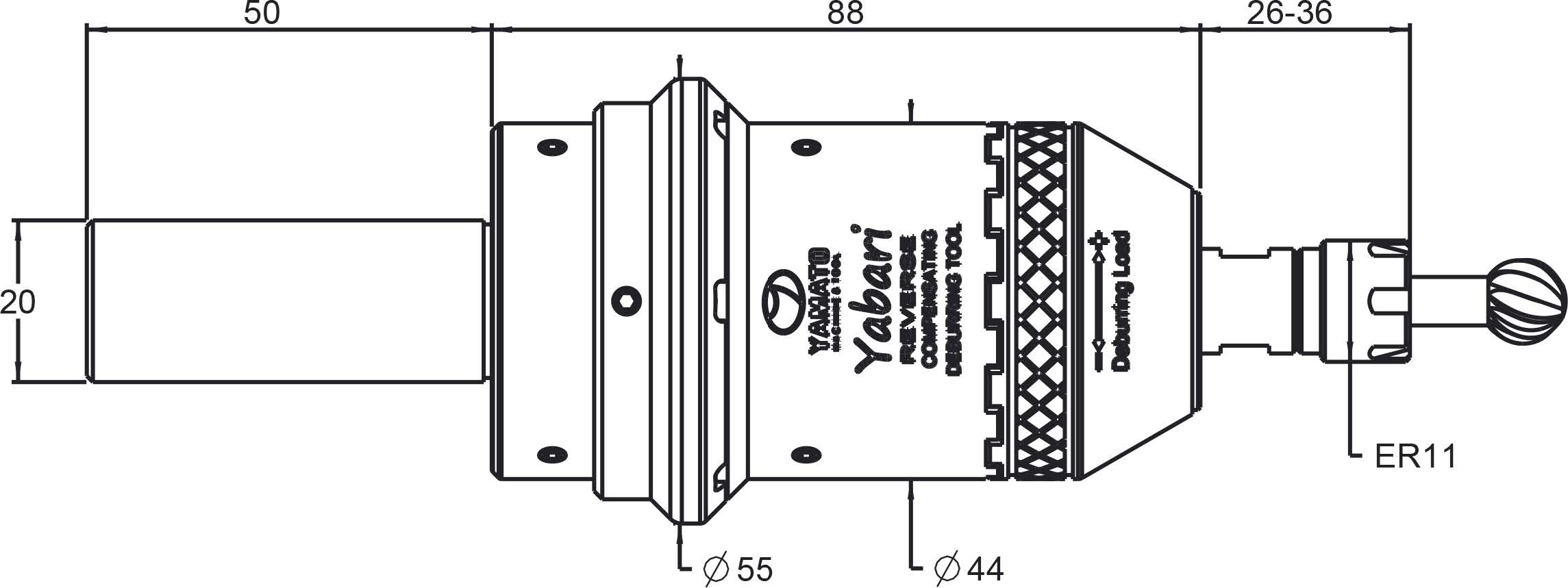

YABARI PULL TYPE

Compensating deburring tool

10mm AXIAL DEFLECTION-PULLING

Included Accessories:

ER11 6mm collet

ERM11 nut

ERM11 spanner

Yabari self compensating deburring tool. Deburring of undefined path with automatic compensation.
High speed machining.
