BSBT 25 – Boring Bar Single Roll Burnishing Tool

BSBT25

BSBT25 is a single roller burnishing tool with bidirectional action, this makes it suitable for internal and external machining with the same positioning on the machine.

Cost reduction, Time reduction, Optimization

• one tool for two machinings
• one less tool change
• turret space saved

Working speed: 0.05-0.2mm/rev – 100-200m/min.

Optimize space in your car and reduce costs with BSBT, a single tool for multiple uses.

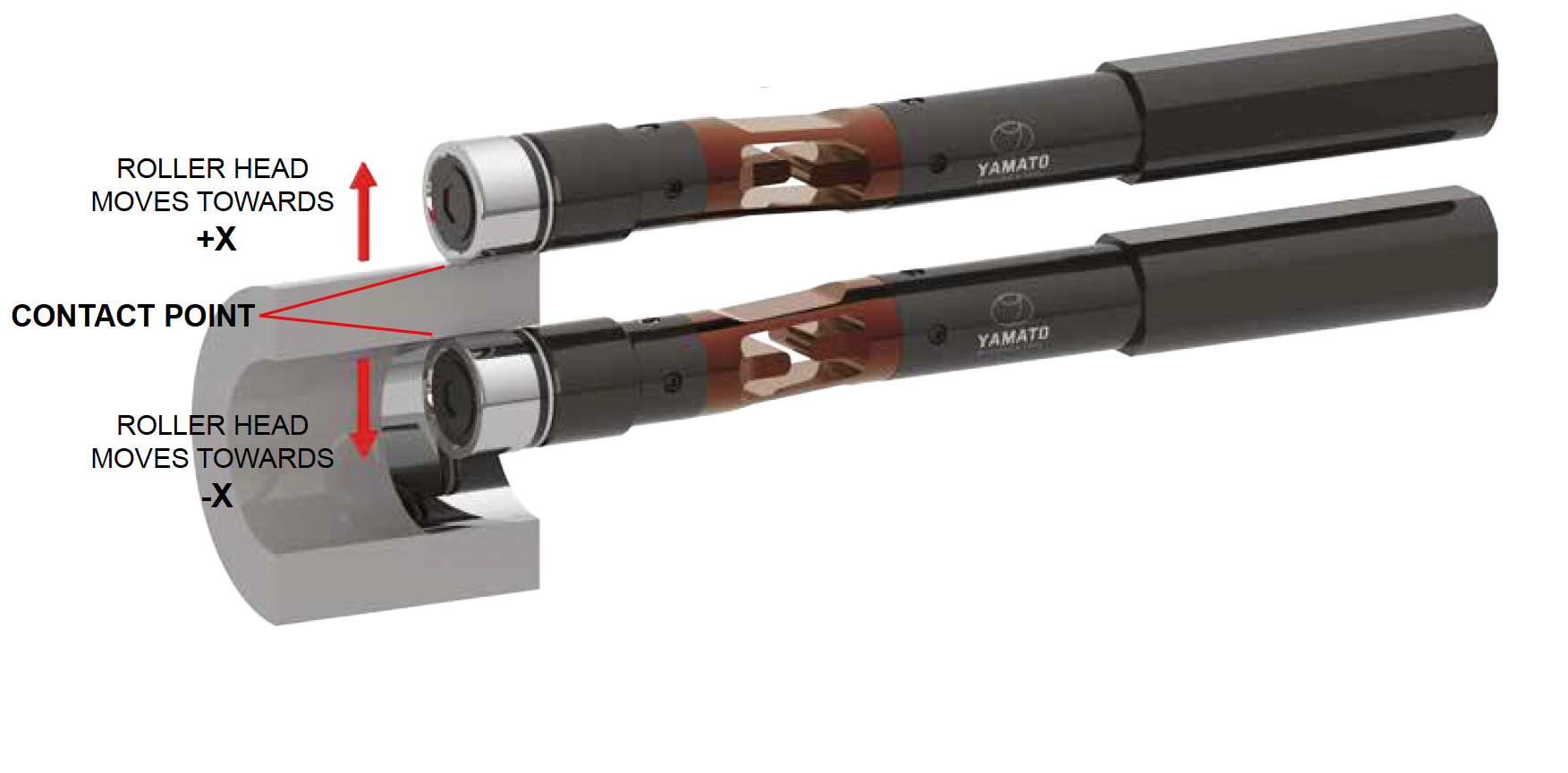

BSBT25 CAN FLEX IN BOTH DIRECTIONS

The BSBT25 is a single roll burnishing tool with bidirectional action, this makes it suitable for performing internal and external machining at the same machine setup.

Working feed : 0.05 – 0.30 mm/rev.

Working speed: 50 – 200 m/min.

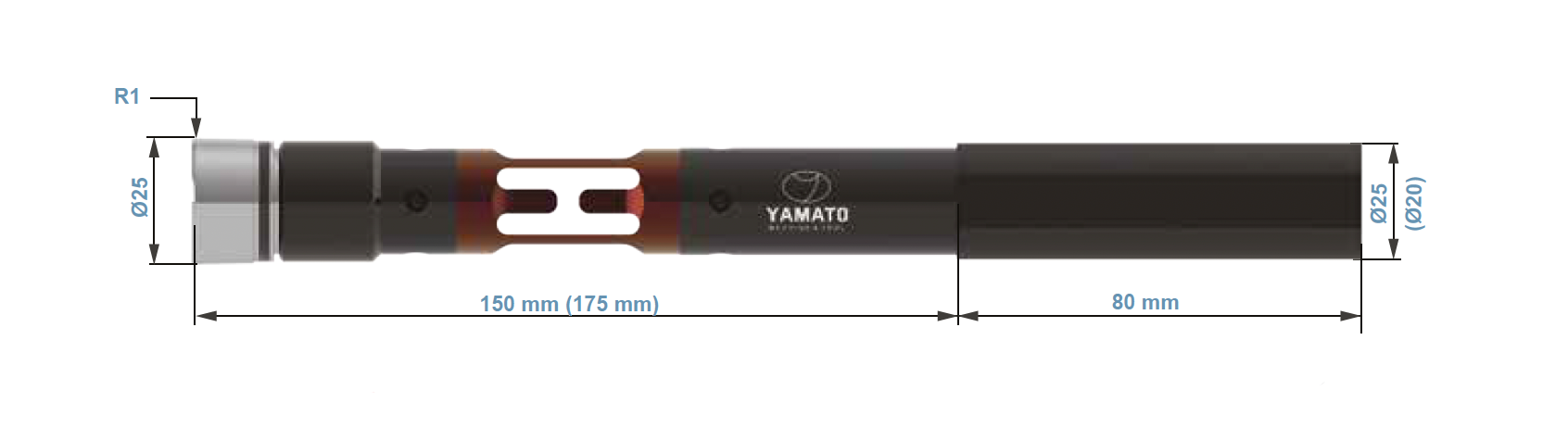

AVAILABLE WITH WORKING LENGTHS: 150 and 175 mm

AVAILABLE WITH SHANKS: Ø20 and Ø25 mm

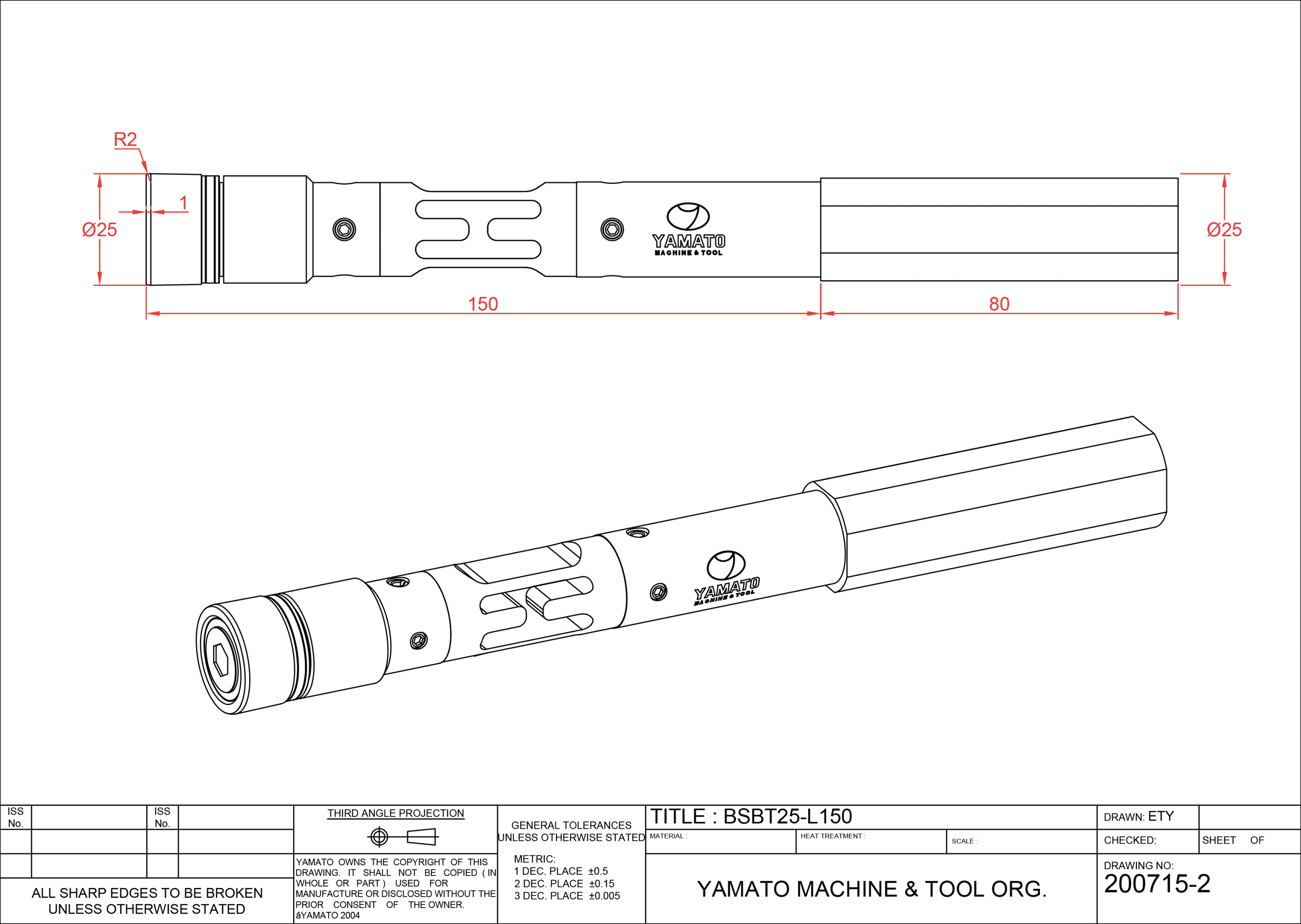

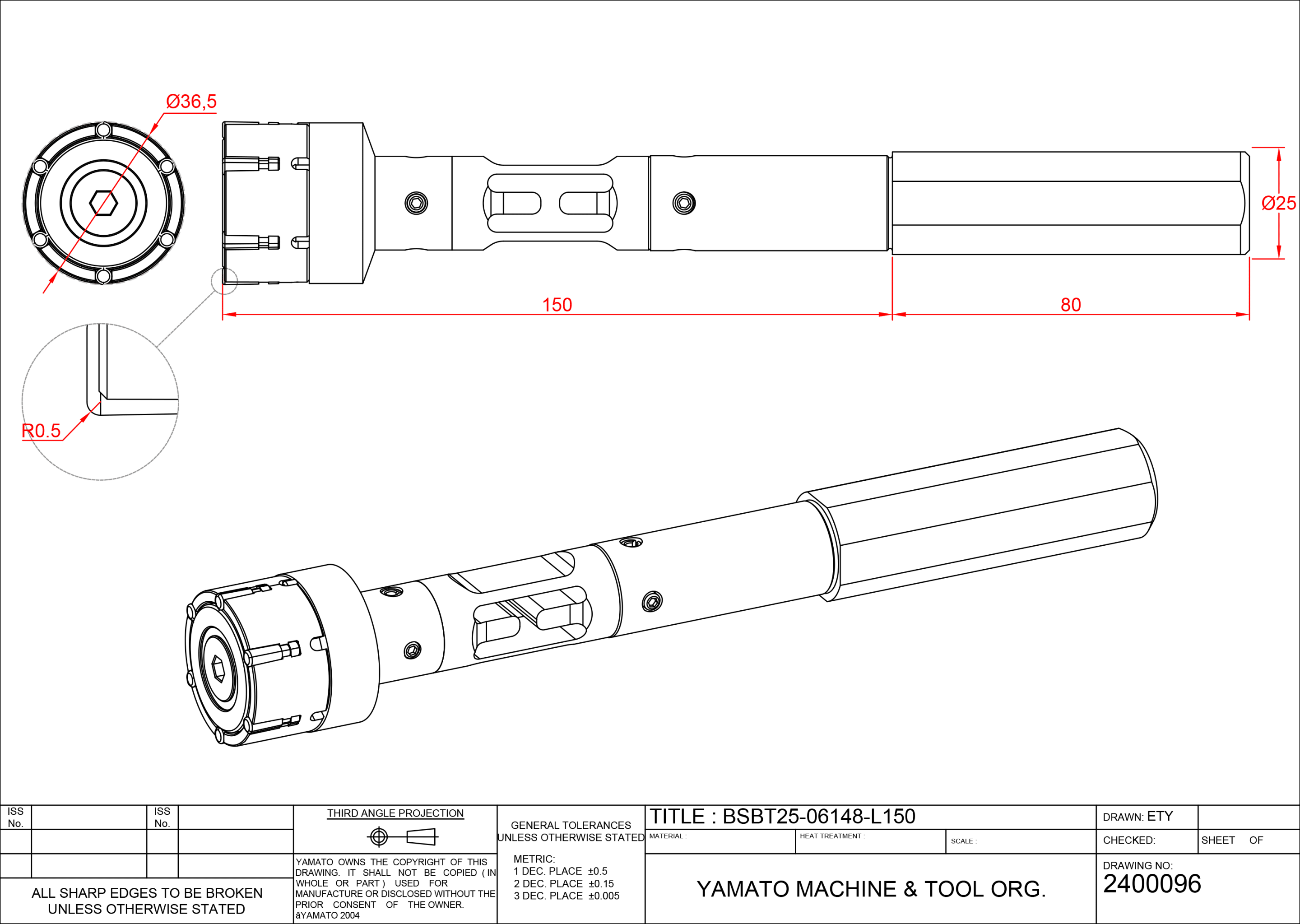

BSBT25-06148 L 150
